Smart hybrid lawn mower
XuanNiao T1-900A
All-terrain mowing, high efficiency
A Whole New Lawn Mowing Experience
The XuanNiao T1-900A Smart Hybrid Lawn Mower features comprehensive autonomous path planning and supports remote monitoring and task scheduling via smartphone[1]. It effortlessly handles sloped orchards and complex terrain, setting a new standard for outdoor vegetation management.
Enables comprehensive path planning
Conquers Any Terrain Slope Capacity: Up to 40° (84% gradient)
Cutting Height: 0.8–5.9 inches Cutting Width: Up to 35.4 inches
Multi-Zone Management: Unlimited maps/areas
Mowing Efficiency: 0.74–1 acre/h
Security: Remote alerts & notifications

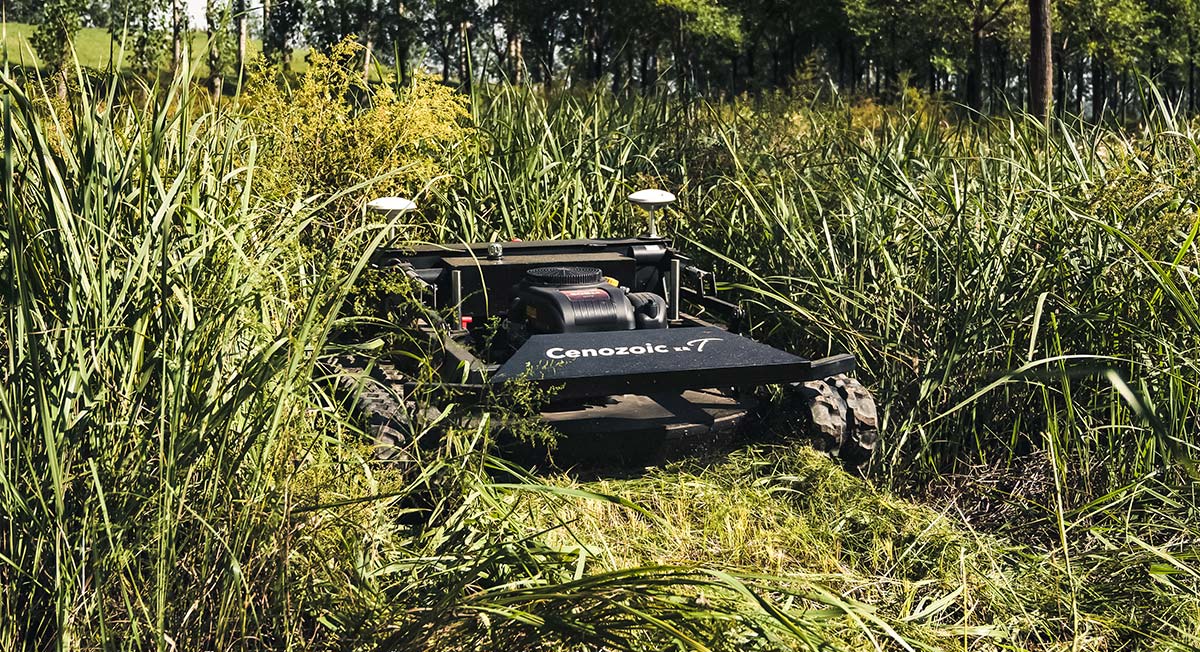

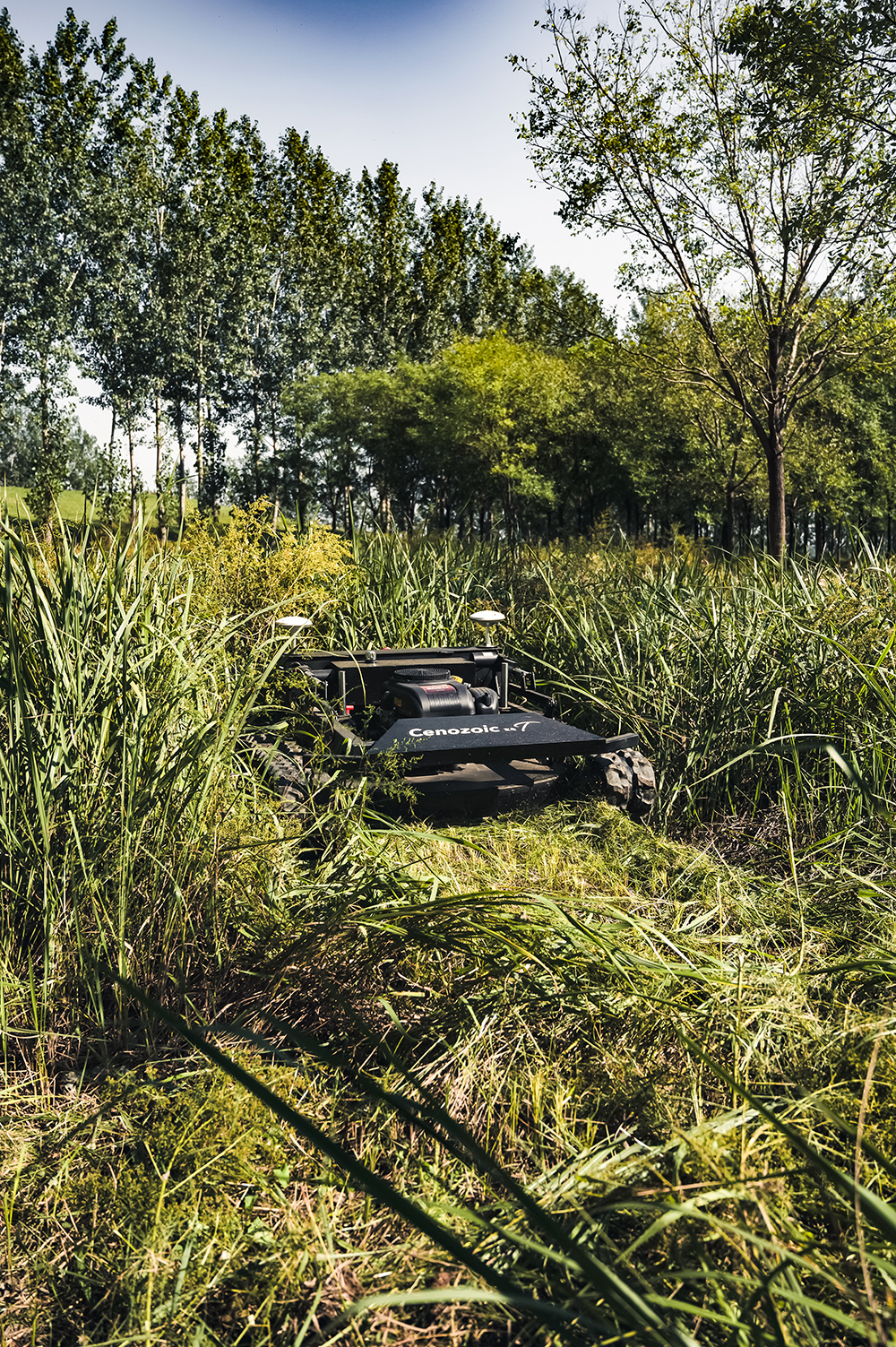

Handle dense, wet grass with ease
Loncin 22 HP single-cylinder engine + high-performance electric motor.
NAV-L3 Omnidirectional Autonomous Navigation System

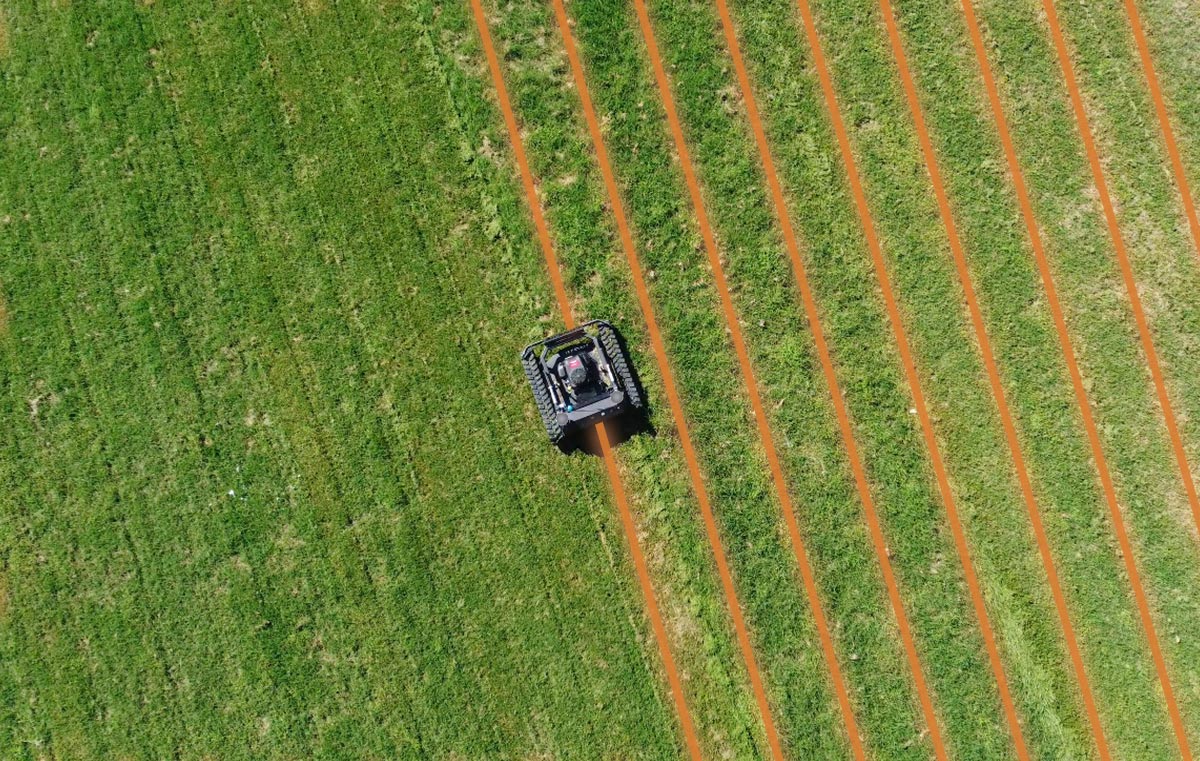

XuanNiao T1-900A is equipped with an advanced GNSS-RTK positioning and navigation system, enabling precise location tracking and route planning. It supports comprehensive path planning options, including square, parallel (zigzag), and custom patterns, as well as orchard-specific operations.

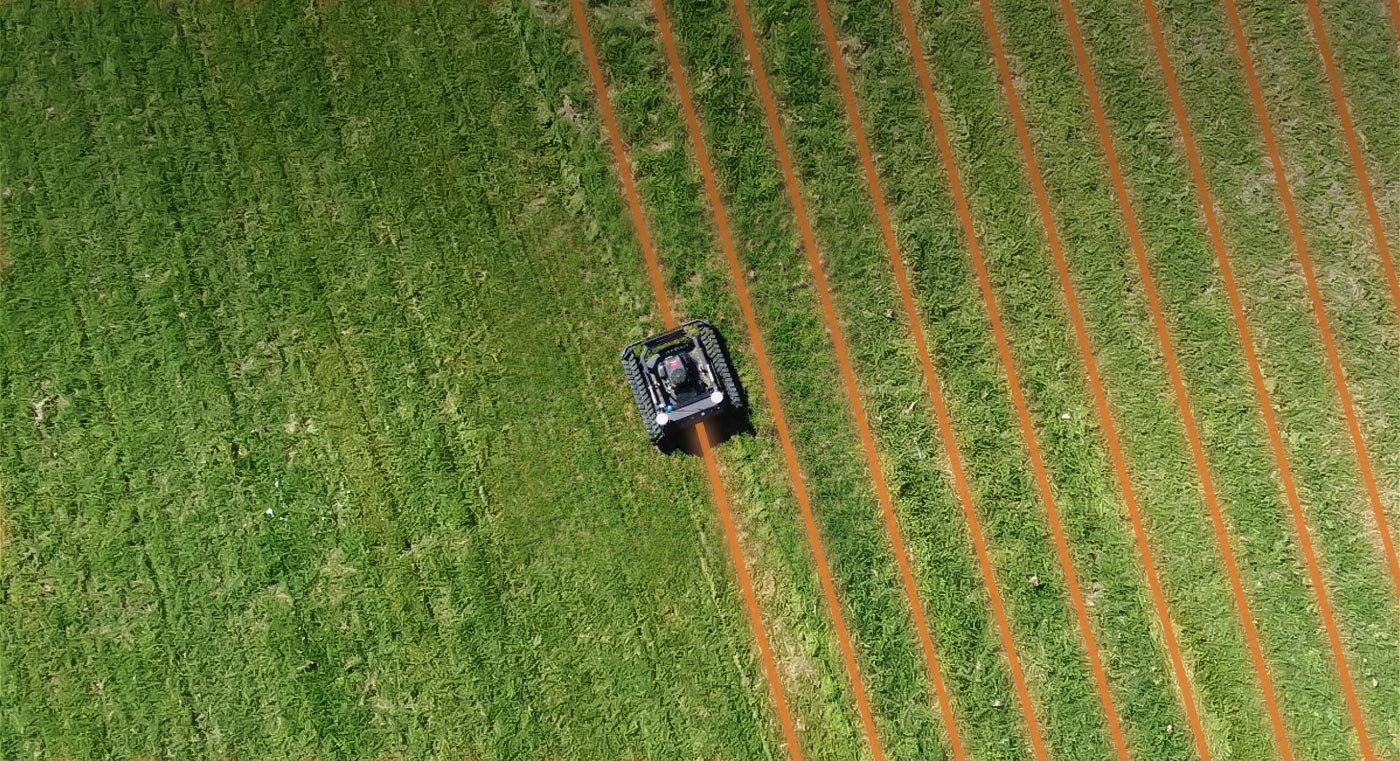

Comprehensive Route Planning
Equipped with advanced intelligent algorithms, it enables fully automated, comprehensive route planning, ensuring no overlapping or missed areas and maximizing efficiency.
Dual Remote Control
Supports remote control and remote alert functions, allowing a single operator to manage multiple devices, thereby significantly reducing labor costs and management complexity.

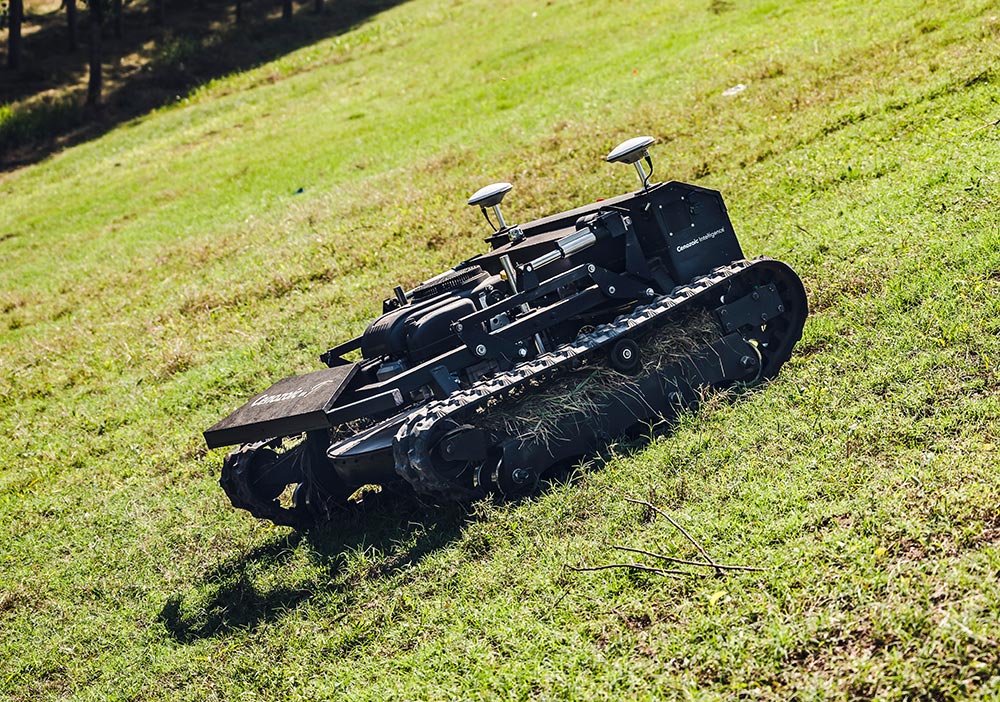

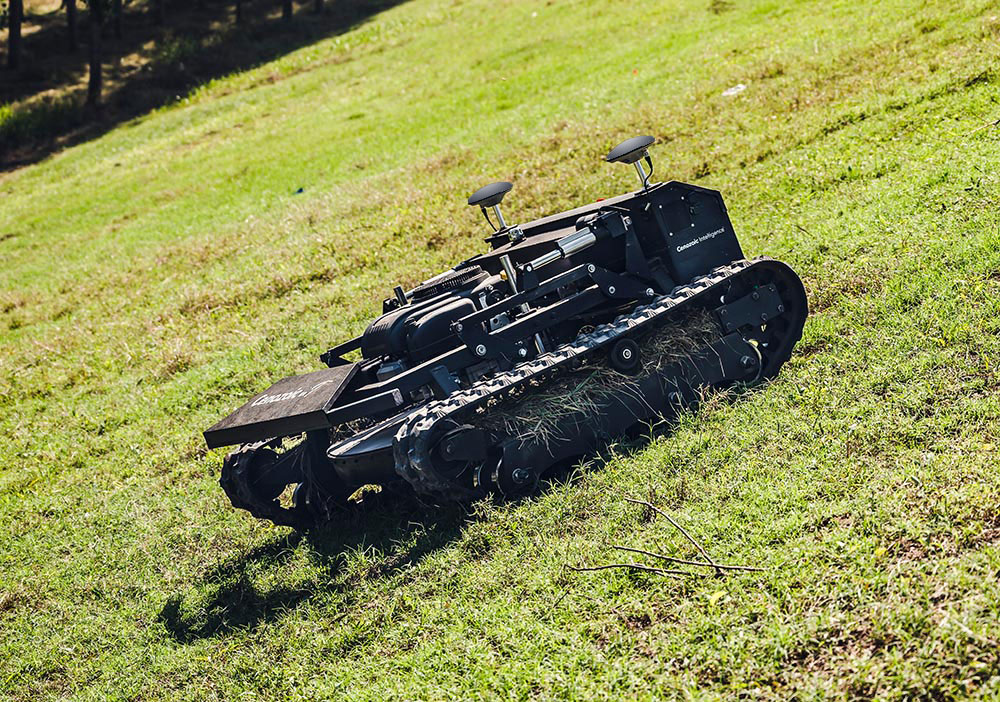

Handles an 84% Gradient 40-Degree Slope Capacity
No need to worry about getting stuck—the industry-leading track design offers up to 84% gradeability and the ability to clear vertical obstacles up to 3.3 inches high, easily navigating common obstacles like small pits and rocks on the lawn.
Dynamic Posture Control
By integrating high-precision IMU data with encoder data, we have developed a proprietary dynamic torque distribution algorithm. It responds within milliseconds if the vehicle begins to slip on an incline, automatically correcting the vehicle’s heading to ensure that the parallel (zigzag) cutting path remains straight and does not veer off course.

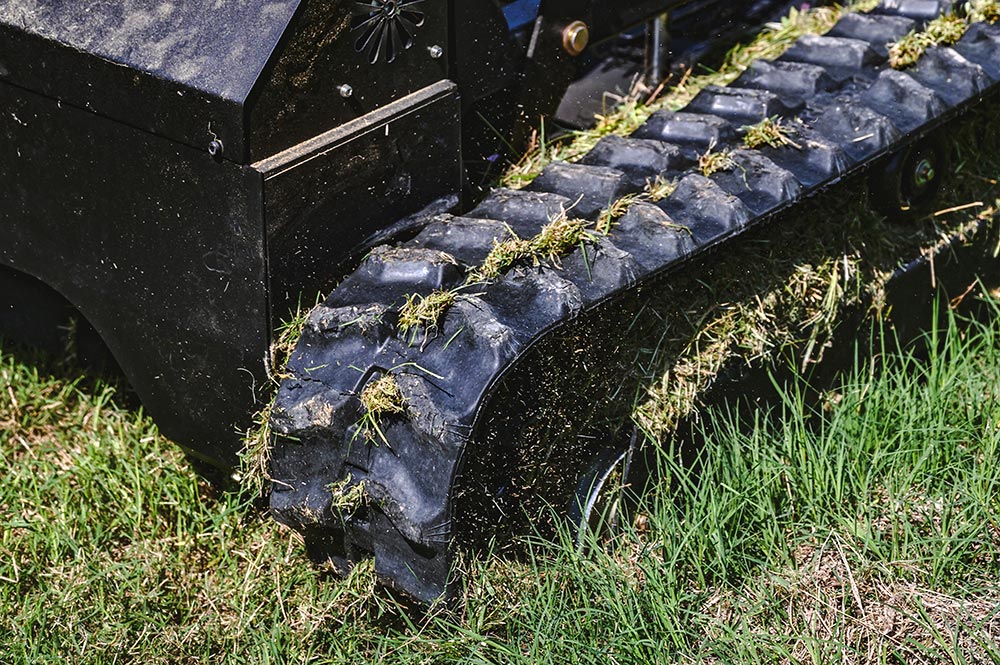

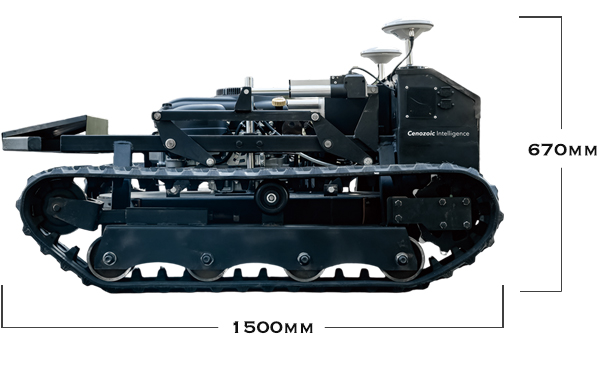

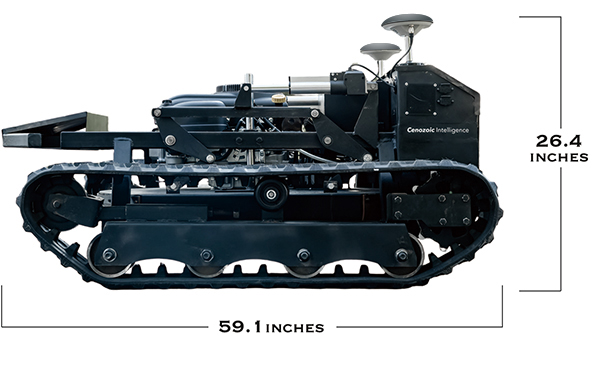

Tracked Chassis
Instead of standard rubber tracks, the vehicle uses industrial-grade, deep-tread herringbone tracks that dig into the ground like climbing crampons. Combined with a self-tensioning floating suspension system, this ensures the vehicle won’t slip or derail on wet, slippery slopes.

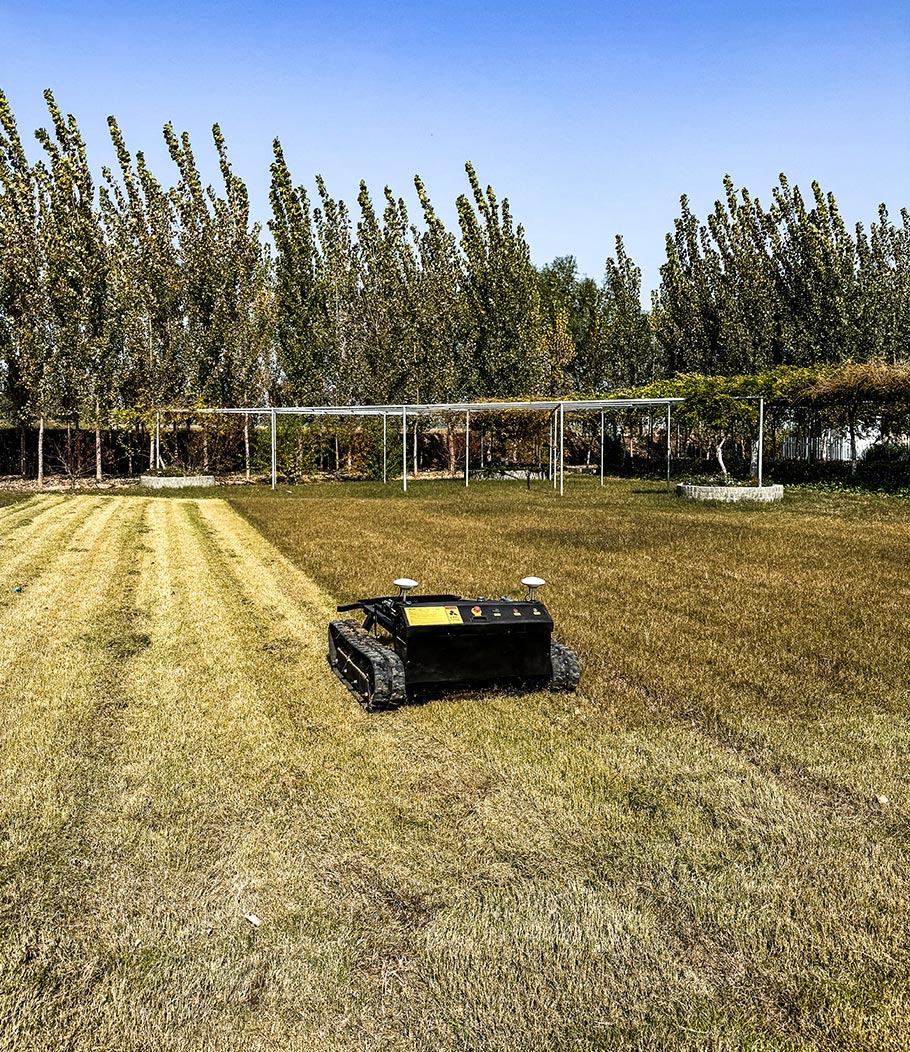

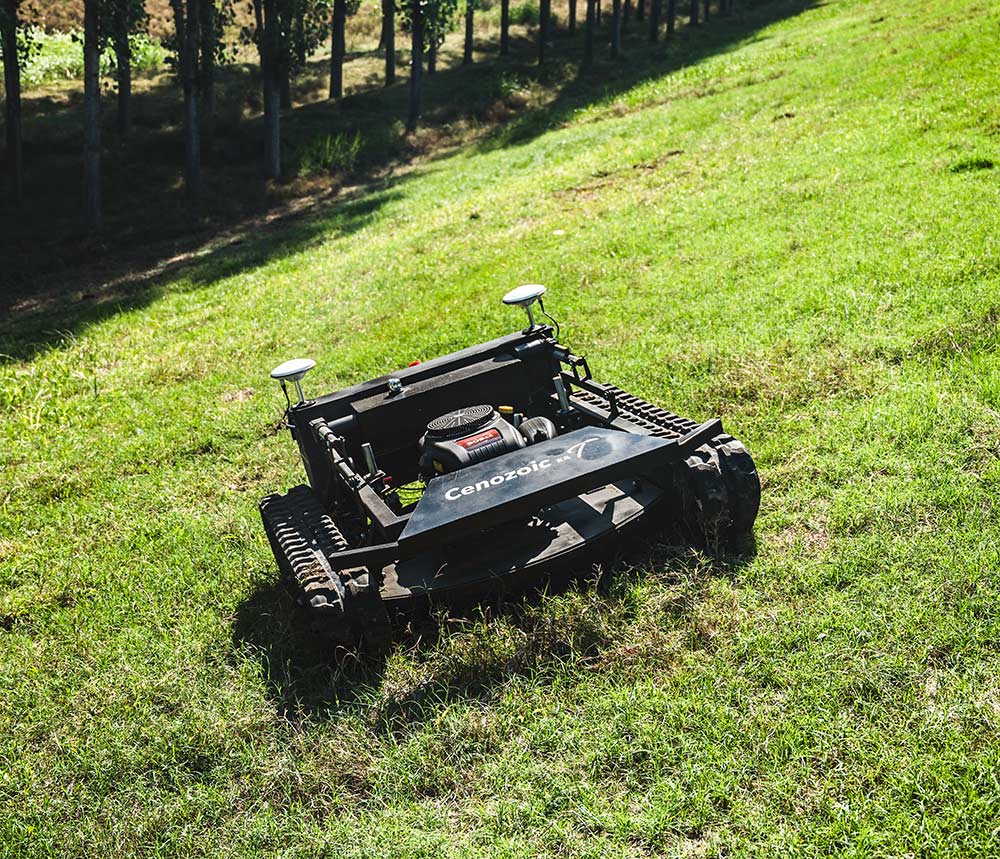

Versatile Operating Terrains
Suitable for diverse terrains, it navigates complex and varied landscapes with agility. Whether traversing highway embankments, steep slopes, vast orchards, or undeveloped wastelands, it handles them effortlessly, significantly reducing labor costs and boosting operational efficiency.

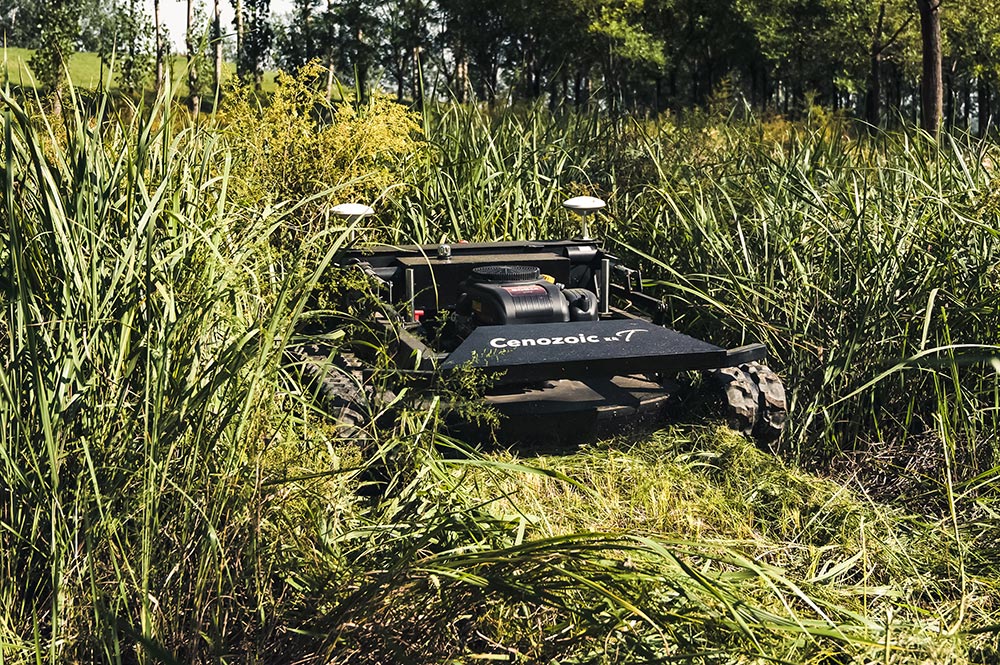

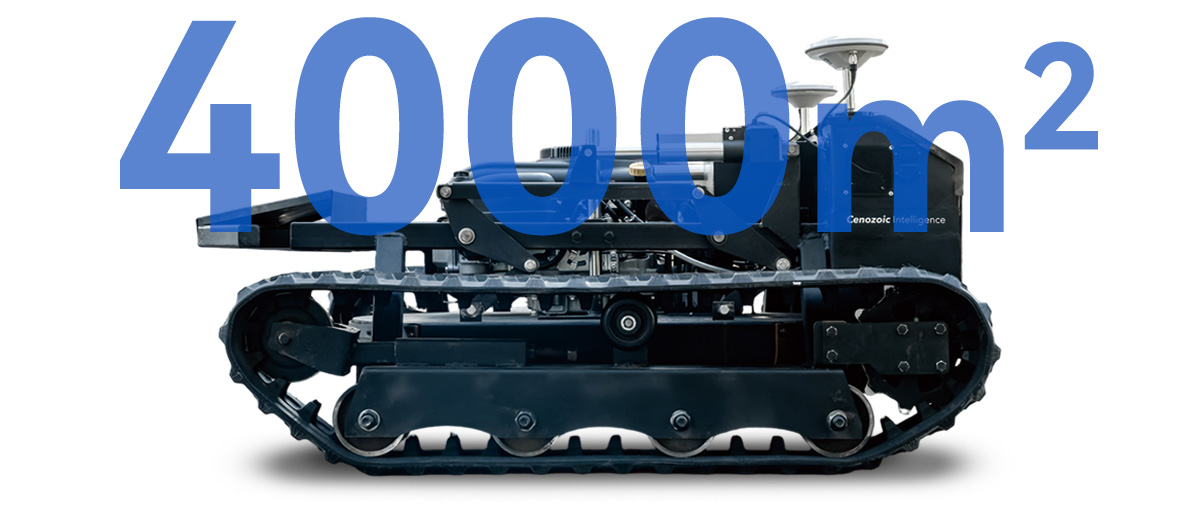

High Efficiency
Features a new-generation intelligent hybrid system combining a 22 HP Loncin single-cylinder engine with a high-performance electric motor. It can cover approximately 0.74–1 acre per hour.
Large-Scale Map Storage
Supports importing massive operational maps, allowing for easy division of different working zones, such as farms, embankment slopes, orchard rows, and solar panel arrays. It also enables flexible configuration of restricted and obstacle-avoidance zones—such as flower beds, cables, and ditches—to achieve precise, unmanned operations in complex environments.

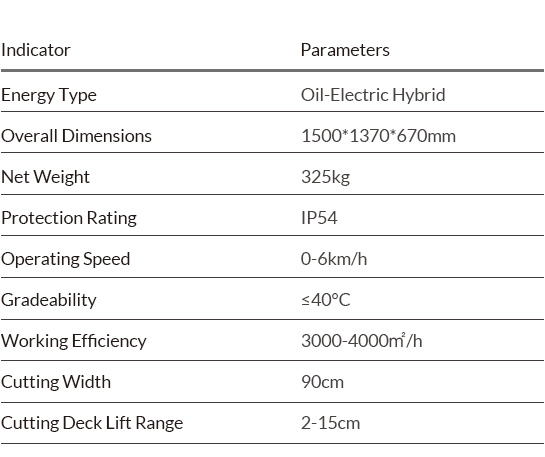

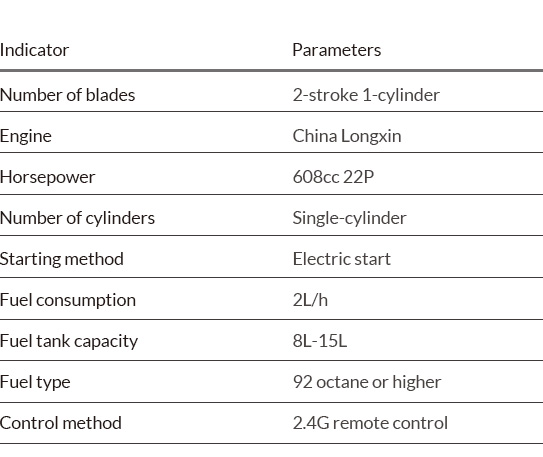

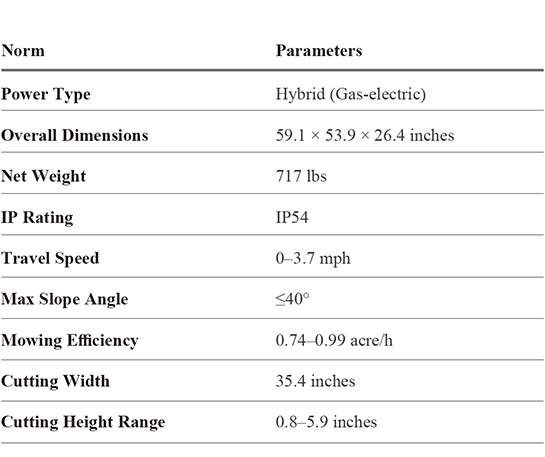

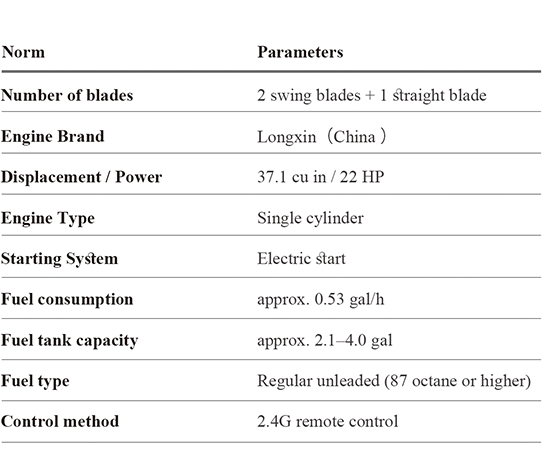

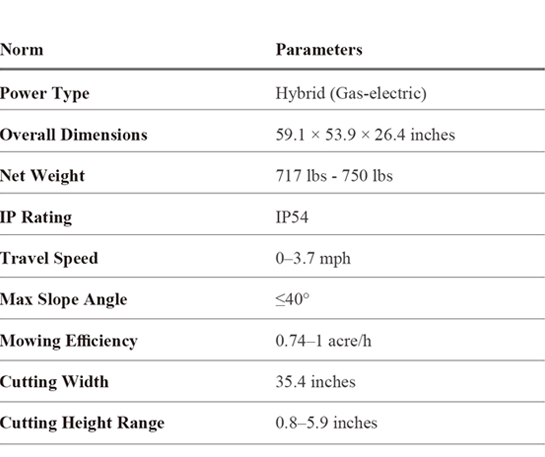

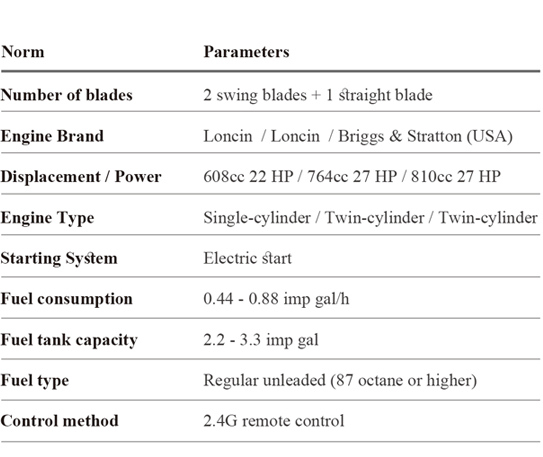

Detailed Specifications
